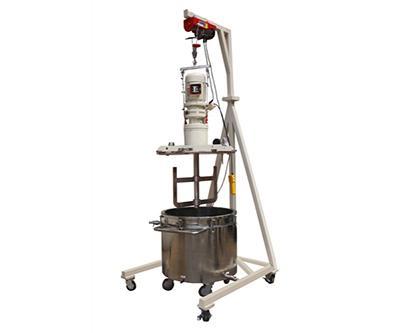

Portable Tank Mixer

Application
The portable tank mixer is primarily used for battery slurry rotation, storage, stirring, secondary defoaming, and delivery to the coating machine. The mixer easily achieves a vacuum state, as well as temperature display, low speed stirring, upper limit of liquid level and alarm.

Features
1. The temperature sensing device for the portable tank mixer is installed on the bottom of the mixing bucket for an accurate and reliable result.
2. The mixing blade can be changed to different sizes and shapes based on application need.
3. The stirring paddles are an anchor type blade and pusher blade.

Technical data
Specification: CLG-ZT-200L
Design volume: 720L
Working volume: 100-200L
Viscosity: 0-1000CPS
Vacuum limit: -0.098 MPA (no vacuum pump)
Total power:~0.75KW
Weight: 1500KG

Except for the parameters listed above, the portable tank mixer can be customized to meet special requirements.
