30L Four Shaft Homogenizing Mixer

Application
The CSH four shaft homogenizing mixer is utilized for liquid and liquid-solid mixture applications for the dissolution and dispersion of materials. This equipment is deployed for scientific research, new energy, electronics, food, and pharmaceutical applications among many other possibilities.

Specifications
The temperature sensing device of the four shaft homogenizing mixer is installed in the bottom of the mixing bucket. It can achieve multipoint temperature measurement and the results are highly accurate and reliable. The mixing blade can be changed for components of different sizes and shapes. Precision casting is used in the modeling process of the stirring paddle. The original spiral pitch and cross-sectional shape will not be destroyed and no elastic deformation will be measured. Therefore, the paddle can be used under high load conditions.

Composition

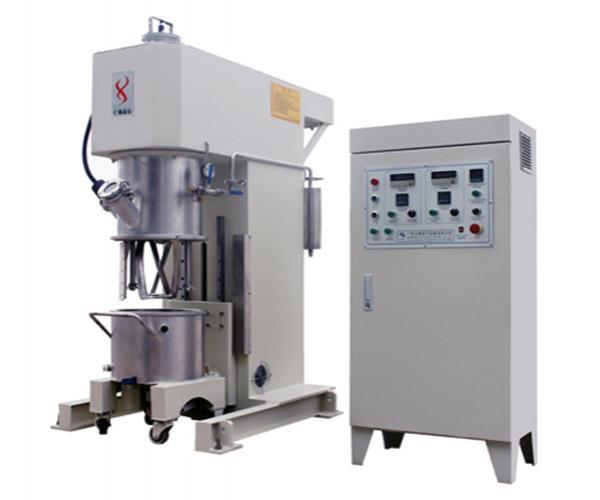

The main body of the machine is composed of a base, column, beam, electric control cabinet, box type transmission device, automatic lifting device as well as a planetary stirring head, cover and tank, vacuum pipe and other components. The material for the main body is Q235, and the material at the contact part is SUS304.

The tank is made up of two-layer jackets (body / bottom), with a finely processed handle. Both inside and outside of the tank are automatically polished to matte finish which is easy for feeding and cleaning. The bottom of the tank is equipped with four sets of mobile casters.

Different seals are used in different segments of the equipment, for example, a silicone rubber seal is used in the stirring cover and the tank, and mechanical seals (carbide) are used at the axle, while silicone rubber seals are used for static components.

Descriptions
The direction of the 30L four shaft homogenizing mixer’s agitator can be adjusted for various alignments and revolution direction for shear purposes. Another high-speed dispersion gear will also run with the revolution direction in order to achieve efficient dispersion and emulsification. The mixing paddle and high-speed dispersion gear are frequency controlled and can be adjusted according to custom speed settings. This allows for high speed mixing with high uniformity.
