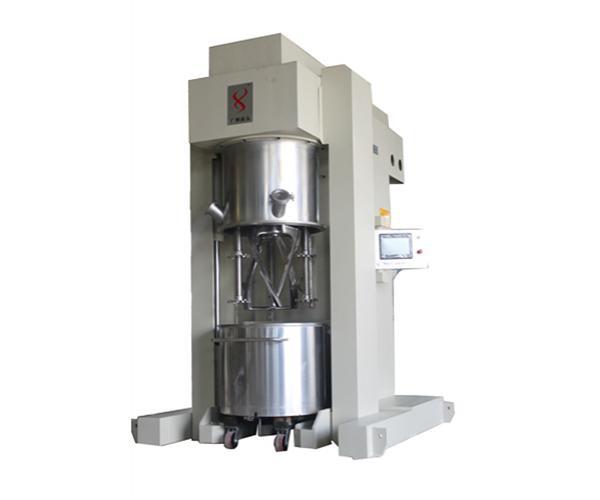

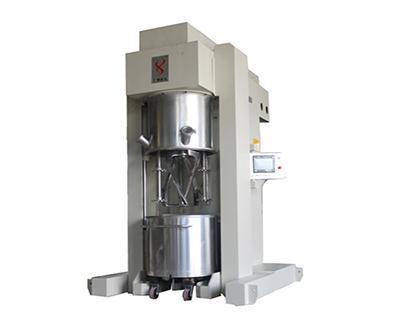

200L Automatic Homogenizing Mixer

Features
The temperature sensing device of the 200L automatic homogenizing mixer is installed in the bottom of the mixing bucket. It can achieve multipoint temperature measurement and the results are highly accurate and reliable. The mixing blade can be changed for components of different sizes and shapes. Precision casting is used in the modeling process of the stirring paddle. The original spiral pitch and cross-sectional shape will not be destroyed and no elastic deformation will be measured. Therefore, the paddle can be used under high load conditions.

Descriptions
During the working process of the 200L automatic homogenizing mixer, the two parallel stirring paddles can operate at a fixed rotating ratio. The direction of the paddles and the rotation can be in the same direction or in contrasting directions, which can be used for different shearing purposes. Two separate high-speed disperse tooth discs will also run with the revolution for the efficient dispersion and emulsification. The mixing paddle and high-speed dispersion gear are all frequency controlled and can be modulated according to the production process custom speed. This kind of movement can uniformly mix the material in a relatively short period of time.

Technical Parameter
Specification CSH-MX-A200L
Design volume 265L
Working volume 100-200L
Maximum loading rate 80%
Viscosity 0-1000000CPS
Vacuum limit -0.098 MPA
Total power ~35KW
Dimensions about 2800mm* width 2000mm* high 3100mm;
Weight 6500 KG

Except for those mentioned above, all product can be customized according to customer's requirements.

Technical Data
Serial number Item Data Unit Quantity Notes
1 Mixer motor 11KW Set 1 Jiangmen
2 Mix transducer 11KW Set 1 Danfoss
3 Dispersion motor 18.5 KW Set 1 Jiangmen
4 Dispersion transducer 18.5 KW Set 1 Danfoss
5 scraped surface agitatorspeed (revolution) 0-40 rpm Pair 1 SUS304
6 Stirring paddle speed (rotation) 0-70 rpm Pair 2 SUS304
7 Dispersion disk speed (rotation) 0-2500 rpm Pair 2 SUS304
8 Dispersion disk size φ170mm Set 4 SUS304
9 Dispersion disk velocity 24 m/s Set 4 SUS304
