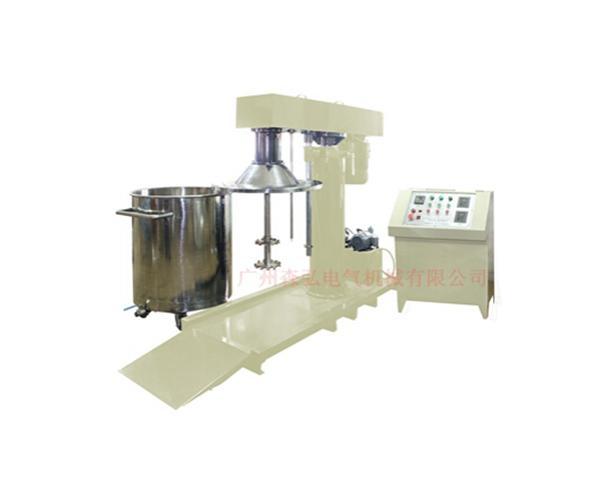

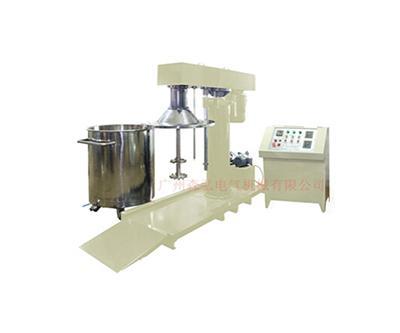

200L Vacuum High Speed Dispenser

The 200L vacuum high speed dispenser can disperse emulsified materials with different viscosity levels. Using a high-speed rotation of the dispersion disk, a strong shear collision and friction is produced between the material and the disk in order to achieve rapid emulsification, dissolving, mixing, and dispersion functions. The device is both good at mixing and homogenizing processes without polluting the air. Using the medium or high speed for mixing processes can ensure the materials will dissolve faster.

Application
The high speed dispenser is primarily used in coating, dye, pigment, ink, paper, adhesive and chemical industries for liquid and liquid-solid mixture, dissolution and dispersion applications.

Features
1. The main body of the 200L vacuum high speed dispenser operates in a stable manner.
2. The axis of the device is stable in order to prevent vibration during the working process.
3. The stirring paddle is made of high strength stainless steel, which is not easily corroded and easy to clean.
4. The 200L vacuum high speed dispenser is equipped with a frequency control device and can accurately control the speed for different materials.
5. The lifting model can be manual, electronic or hydraulic- customers can choose which type they need.
6. The vacuum high speed dispenser can be customized.

Technical Parameter
Specification: CSH-GF-40HP
Design volume: 265L
Working volume: 100-200L
Maximum loading rate: 82%
Viscosity: 0-1000CPS
Total power: ~32KW
Dimensions: about 2500mm* width 1750mm* high 1960mm(rising height~3060mm);
Weight: 3000 KG
