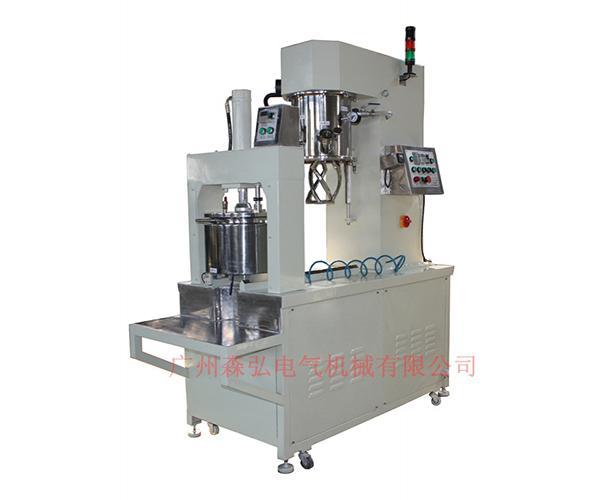

Vacuum Mixer and Discharge Press

Product details
For different shear purposes, the direction of the agitator can be aligned either with or against the revolution direction. Another high speed dispersion gear also runs with the revolution for an efficient dispersion and emulsification process. The mixing paddle and high-speed dispersion gear are all frequency controlled and can be modulated according to the production process custom speed. This kind of movement can uniformly mix the material in a relatively short period of time.

Technical Data
Model CSH-MX-2L CSH-MX-6L CSH-MX-10L CSH-MX-15L CSH-MX-20L CSH-MX-30L
Design volume 5L 10L 15L 20L 25L 40L
Dispersion speed 5000rpm 5000rpm 5000rpm 4500rpm 4500rpm 3800rpm
Stirring speed 140rpm 140rpm 140rpm 130rpm 120rpm 120rpm
Total power 3kw 4kw 4.5kw 5kw 6kw 8kw
Additional features heating system, cooling system, charging system, dis-charging system.
