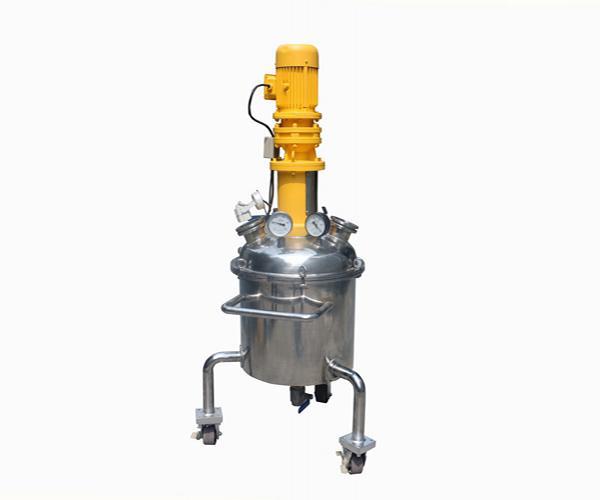

Jacketed Stainless Steel Tank

The tank consists of a two layer jacket with a handle. The interior is cast in a precision process, and both the interior and exterior are automatically finished using a matte finish to make feeding and cleaning easy. The bottom of the tank is equipped with four sets of mobile casters.

Technical data
Specification: CSH-ZT-200L
Design volume: 265L
Working volume: 200L
Maximum loading rate: 80%
Viscosity: 0-1000CPS
Vacuum limit: -0.098 MPA (no vacuum pump)
Total power: about 3KW
Weight: 700KG

With the exception of the parameters listed above, this stainless steel tank can be customized according to customer requirements.
